Navi Conversion/PS2/iPod install -- Page 2 of 6

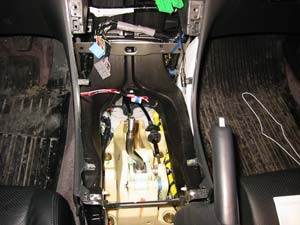

Removing the center console makes things look like this. Refer to the Helm's manual for instructions.

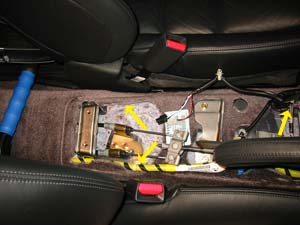

Here's what it looks like when you remove the armrest. I've highlighted where I passed a lot of the wires coming from the trunk.

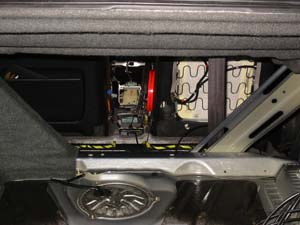

After gutting the trunk and removing the backseats, you can see right through to the front of the car.

Am I going to be able to put this back together???

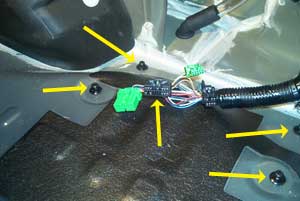

Here's where the navi unit was in the trunk. Note the highlighted screws you have to unscrew, and the connector you'll have to tap into (unless you have a plug and play version of the navi conversion unit you've chosen).

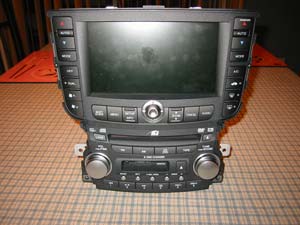

Here's what the head unit looks like on its own.

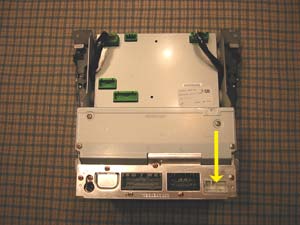

The highlighted connector is where the Blitzsafe adapter will connect.
